A Guide to Modern Flood Protection

Flooding can cause devastating consequences for a home, business, or community. Climate change is causing a shift in the number and severity of floods across the United States, including in urban areas.

Traditional sandbags still show up during emergencies, but there are better flood barriers available that are safer, stronger, and more reliable, while being faster and easier to deploy.

Understanding how these systems work will help you choose the right protection for your facilities.

What Flood Barriers Are Designed to Do

Flood barriers are temporary or permanent structures engineered to keep rising water from reaching the areas behind them. Their main goals are to:

• Direct water away from buildings and infrastructure
• Reduce property and equipment damage
• Keep businesses operational
• Improve safety during severe weather

Different systems use different mechanisms, but all rely on the same engineering principles: stability, sealing, and controlled deployment.

How Flood Barriers Work: The Core Principles

1. Stability Against Water Pressure

As water rises, it applies a significant horizontal force. Barriers must stay anchored and resist sliding or tipping. Engineers achieve this through:

• Wide bases
• Interlocking geometry
• Weight (either built-in mass or water-filled systems)
• Shapes that distribute pressure downward rather than outward

2. A Continuous, Sealed Wall

Flood barriers are only as strong as their weakest gap. Modern systems create a tight, continuous line of defense by using:

• Overlapping or interlocking sections
• Compression seals
• Gasketed joints
• Angled designs that reduce seepage

This greatly reduces water intrusion compared to sandbags, which often shift or compress under pressure.

3. Rapid, Predictable Deployment

Flooding can happen quickly. For that reason, the best barrier systems focus on:

• Lightweight, modular sections
• Tool-free setup
• Compact storage
• Reuse for multiple events
• The ability to deploy long runs with small teams

4. Balanced Water Load Management

Floodwater applies vertical load (downward), horizontal load (sideways), and dynamic load (movement). Engineered barriers counter these forces through:

• Structural ribs
• Angled faces
• Reinforced walls
• Geometry that becomes stronger as water presses against it

How Water Pressure Interacts With a Flood Barrier

Hydrostatic pressure increases with water depth, meaning the greatest force is concentrated at the base of a barrier. Modern flood barriers are shaped to take advantage of this behavior.

Instead of acting like a flat wall that must resist pressure head-on, engineered barriers use angled faces and wide footprints to redirect force downward. This reduces the risk of sliding and limits uplift, even as water levels climb.

In practical terms, deeper water often makes these systems more stable, not less.

Types of Flood Barriers and How They Work

Engineered Modular Barriers

Modern systems made from tough molded materials create a highly stable, reusable wall. Their geometry resists water pressure, and the modular design allows teams to set up long runs quickly, shape barriers around corners, and store units compactly between storms.

What to Consider

• Designed for firm, even ground surfaces
• Suitable for repeated deployments
• Limited by maximum rated water depth

Where They’re Used

• Industrial facilities
• Distribution centers
• Utilities
• Municipal infrastructure
• Airports
• Transit assets
• Commercial properties
• Schools
• Hospitals

Water-Filled Barriers

These systems use water as ballast. Once filled, they form a stable, flexible wall.

What to Consider

• Require access to water for filling
• Slower setup than dry modular systems
• Larger storage footprint

Where They’re Used

• Long perimeters
• Parking lots
• Road closures

Geotextile and Cellular Barriers

Similar to sandbags, but more specifically and intentionally engineered for flooding, cellular barriers are expandable mesh-and-fabric containers that are filled with sand or soil to create temporary levees. They’re widely used in disaster response due to their speed and scalability.

What to Consider

• Fast for large-scale response
• Require heavy equipment or fill material
• Disposal and cleanup after use

Where They’re Used

• Riverbanks
• Large perimeters
• Rapid-response flood mitigation

How Modern Flood Barriers Improve on Sandbags

• Deploy in a fraction of the time
• Reduce labor requirements
• Form a more reliable seal
• Perform better under hydrostatic pressure
• Store easily between events
• Avoid disposal concerns tied to contaminated sand
• Offer long-term cost advantages through reuse

Flood Barriers vs. Flood Walls vs. Levees

Flood barriers are not the same as permanent flood walls or earthen levees. They fill the gap where permanent infrastructure is impractical, too slow to build, or unnecessary for intermittent flood risk.

• Flood barriers are temporary or modular systems designed for rapid deployment and removal.
• Flood walls are permanent concrete or steel structures built into a site’s infrastructure.
• Levees are large-scale earthen embankments designed for long-term regional protection.

Where Flood Barriers Are Commonly Deployed

• Municipal buildings
• Wastewater and water treatment plants
• Power and utility infrastructure
• Warehouses and distribution centers
• Airports and transit systems
• Doorways, loading docks, and mechanical rooms
• Commercial storefronts and residential properties

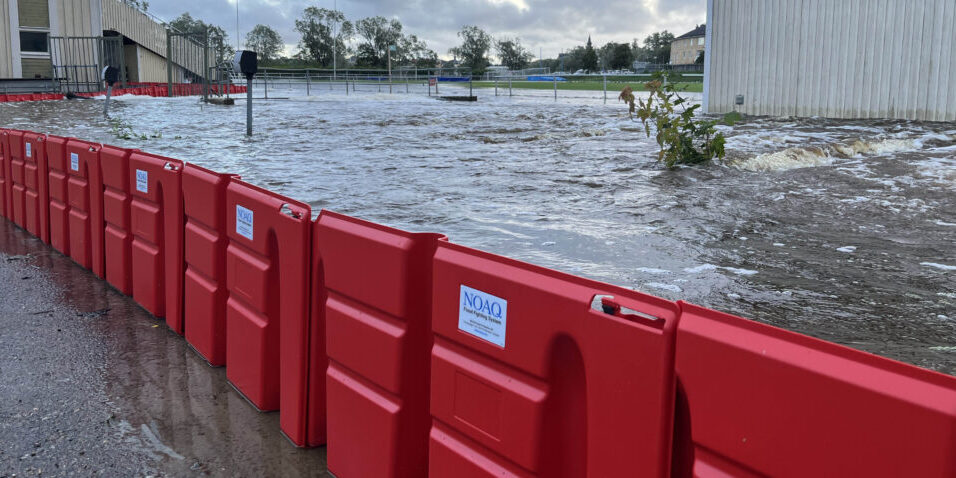

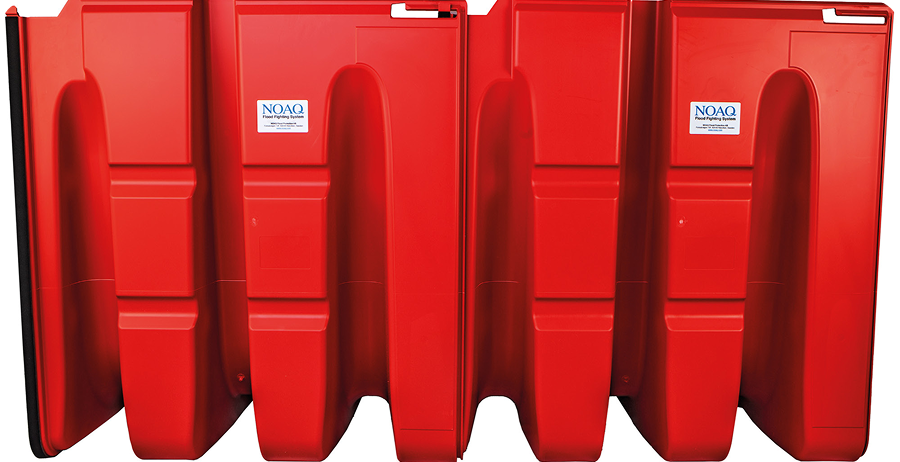

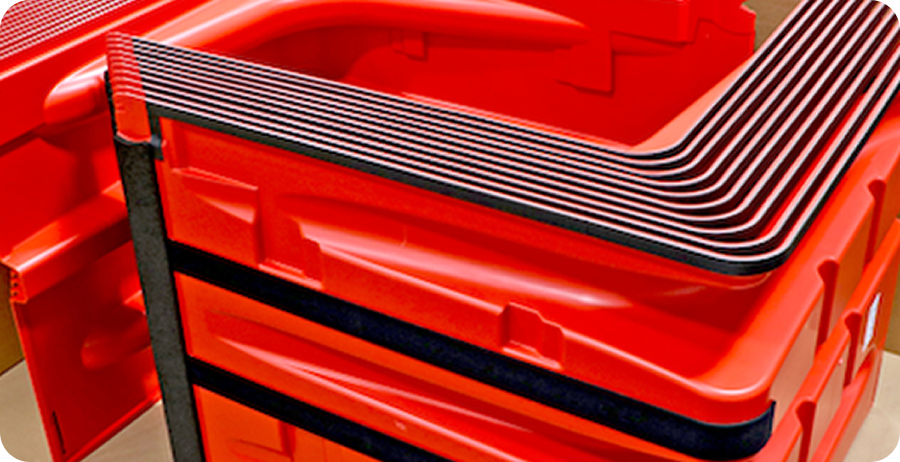

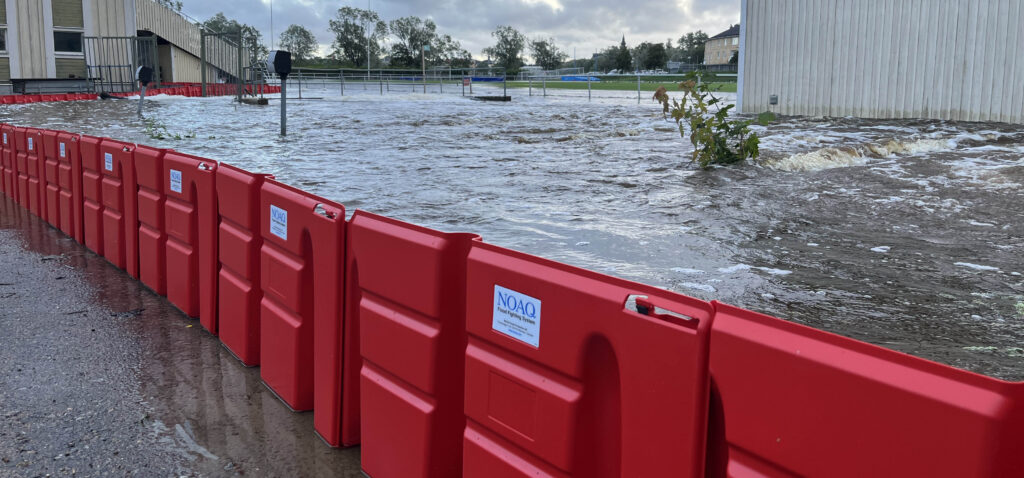

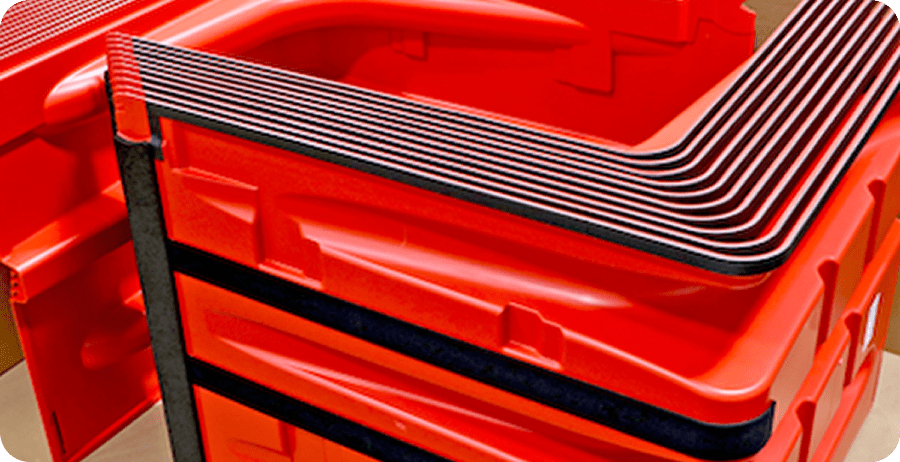

Modular Barriers from Cascade Engineering

Cascade Engineering’s modular flood barrier systems are designed for fast deployment, repeat use, and dependable performance. Built from durable, engineered plastics, these barriers rely on geometry and mass rather than permanent anchors or heavy equipment.

Each unit interlocks to form a continuous wall that resists sliding and tipping as water levels rise. As pressure increases, the barrier becomes more stable, directing force downward into the ground while maintaining a tight seal along the base.

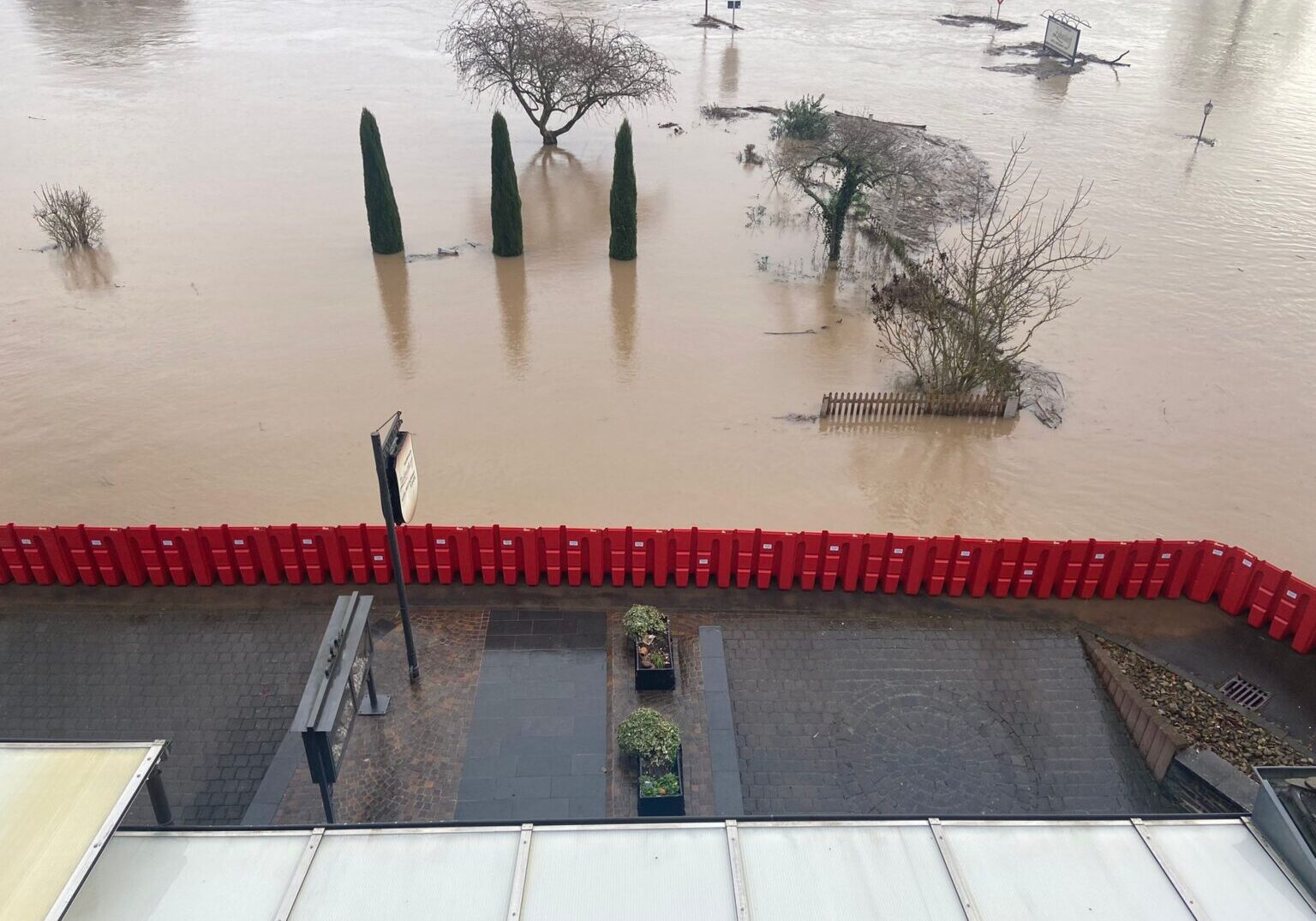

Because the system is modular, teams can adapt layouts to match site conditions. Barriers can wrap around buildings, protect doorways and loading docks, or create long perimeter runs with minimal setup time. When flooding subsides, the units can be removed, cleaned, and stored for future use.

Order Flood Barriers Today

Get ahead of flood risk with modular barriers built for fast deployment, repeat use, and dependable performance. Connect with our team to discuss your site, timeline, and protection goals.

Frequently Asked Questions

Do flood barriers completely stop water?

No temporary barrier is fully watertight, but engineered systems minimize seepage far more effectively than sandbags.

How much water can flood barriers hold back?

Capacity depends on system design. Many modular barriers are rated for several feet of water depth.

Do flood barriers work on uneven ground?

Performance improves on firm, level surfaces, though some systems accommodate minor surface variation.

How long can barriers stay in place?

Some systems can remain deployed for weeks, depending on weather and site requirements.

Are flood barriers reusable?

Many engineered barriers are built for repeat deployment, which helps reduce long-term costs.

How do you choose the right barrier?

Key factors include expected water height, available space, deployment crew size, storage capacity, and required speed of setup.

Why choose engineered flood barriers?

Engineered flood barriers are built to perform predictably under pressure. Unlike sandbags or improvised methods, these systems are tested, repeatable, and designed around known hydraulic forces.
